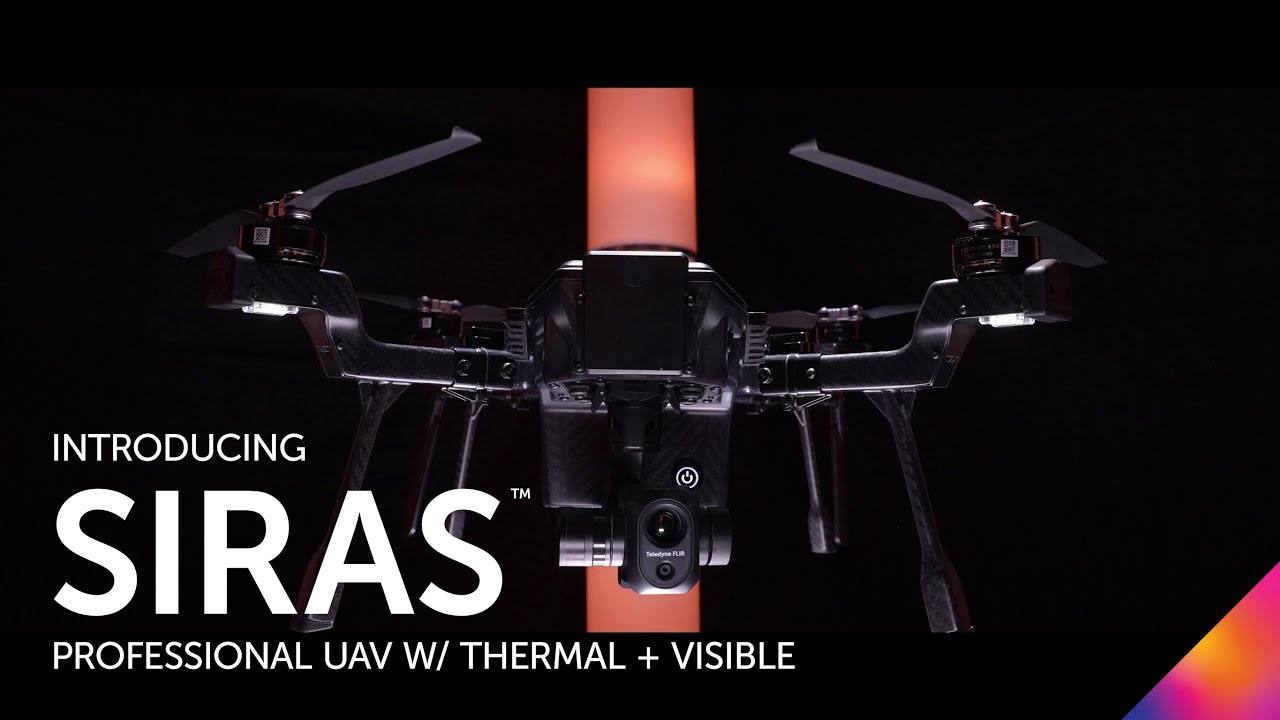

SIRAS is an affordable, easy-to-fly, IP54-rated professional drone with an interchangeable payload system for industrial and utilities inspection, firefighting, law enforcement, and search and rescue missions. With front collision avoidance, hot swappable batteries, a 31-minute flight time, and no restrictive geofencing, professional UAV pilots can fly safely when and where the mission demands.
The quick-connect Vue® TV128 payload features patented MSX® technology, adding visible-light outlines to thermal imagery to provide critical information in real time. The 16MP visible camera delivers clear, pinpoint details with a 128x zoom. A 640x512-pixel, radiometric FLIR Boson® provides sharp thermal imagery, 5x digital zoom, and accurate temperature-measurement.
Designed for data security, SIRAS stores imagery on an onboard microSD card and does not include cloud connection capability. To further protect data chain of custody, pilots are not required to create an online profile, increasing ease of use and reducing potential unintended online data access. SIRAS provides best-in-class imagery, mission flexibility, secure data, and compatibility with the leading photogrammetry software enabling the pros to get the job done.
- Products
- Public Safety
- sUAS Cameras & Kits
- SIRAS™
Added to cart
-
Secure flight data from an affordable and flexible aircraft
Operate in rugged environments with data security and flexibility for future payload needs
-
See and do more with clear thermal and visible imagery plus FLIR MSX
Real time, high-resolution imagery provides critical data for immediate decision support and post processing
-
Fly missions safely where and when needed
Get in the air quickly without restrictive geofencing and fly for up to 31 minutes
SIRAS Controller Safety Bulletin
We believe that there is a firmware programming gap within the SIRAS controller may affect the communication between the controller and the aircraft. This firmware issue could lead to unstable or uncontrollable flight of the aircraft.
All SIRAS systems that are using firmware version 1.16.46 and prior are potentially impacted. Please update your firmware.
Specifications
Aircraft
- Collision Avoidance
- Front Facing Radar: up to 30 m, when flying <5 m/sec speed
Ground detection via underside sensors
- Default Ground Speed
- 5 m/sec (11.2 mph)
- Disconnect Return To Home
- Yes
- Foldable Props
- Yes
- Geo-Fencing
- None
- Hover Accuracy
- Vertical: ± 0.5 m (± 1.6 ft) Horizontal: ± 1.5 m (± 5 ft)
- Ingress Protection
- IP 54 (airframe, controller, and payload)
- Maximum Ascent Speed
- 6 m/sec (13.4 mph)
- Maximum Decent Speed
- 4 m/sec (9 mph)
- Maximum Descent Speed
- 4 m/sec (9 mph)
- Maximum Ground Speed
- 18 m/sec (40 mph)
- Night Flight Beacons
- Yes (red and white), on/off & blink options
- Operating Environment
- - 10°C to 40°C (10 °F to 104 °F)
- Take Off Readiness
- 1 min after power ON
- Weight [including battery]
- 3.1 kg (6.8 lb)
- Wind Resistance
- 10 m/s (22.4 mph)
Battery
- 20% Battery Warning
- Yes, visual and audio signal
- Battery Power
- 6,000 mAh
- Charging Temperature Range (Celsius)
- 5 °C to 50 °C (41 °F to 122 °F)
- Charging Time
- <45 min
- Hot Swappable Batteries
- Yes
- Max Charging Current (A)
- 6 A
- Maximum Flight Time
- 31 min (rated)
- Maximum Hovering Time
- 28 min (rated)
- Return To Home
- Yes. 10% Battery
- Storage Temperature And Humidity
- Room temperature and <70% is recommended
Gimbal
- Max Control Speed
- 120°/sec (pitch, pan, roll)
- Maximum Rotational Range
- Pan: ±90°; Pitch -120° to +30°
- Motion
- 3-axis
- Stabilization
- Plus / Minus 0.02°
Imaging & Optical
- EO Camera Optics
- Effective Focal Length (EFL) 4.8 mm, 67° HFOV, F/# 1/2.3
- EO Camera Resolution
- 16 MP with 20 MP mapping mode, 128x zoom
- FLIR MSX
- Yes, photo mode only.
- IR Camera Optics
- Effective Focal Length (EFL) 13.6mm, 32° HFOV, F/# 1.0
- IR Camera Resolution
- 640 x 512, radiometric, 5x zoom
- IR Video Frame Rate
- 60 Hz
- Radiometric Features
- Spot meter, Isotherms, Region of Interest (ROI)
Mechanical
- Type
- Li-Ion 4S
Remote Controller And Transmission
- Built-In Battery
- 210 min
- Display Brightness
- 1,000 lumens
- Display Latency
- <1 sec
- Layout
- Mode 2 (default)
- Operating Distance
- 9 km (6 miles) - zero interference and no obstructions 3.2 km (2 miles) is typical limit in most settings
- Operating Frequency
- Dual Ban: 2.4 GHz / 5.8 GHz
- Transmission Quality
- 1080P, 30 fps
Storage
- Internal Storage
- Formatted 64 GB micro SD (provided with aircraft)
- SD Storage
- 1 GB
